Adaptive motor

Adapting to two-phase hybrid stepper motor; it can   adapt to the current up to 3A

Power supply

15   - 48V DC

Output current

0.4A-3A/phase   (peak)

Input   signal

STEP (startup) signal

Optocoupler input voltage H=3.5-26V, L=0-0.8V

Conducting   current 6-15mA

DIR (directional) signal

EN (enabling) signal

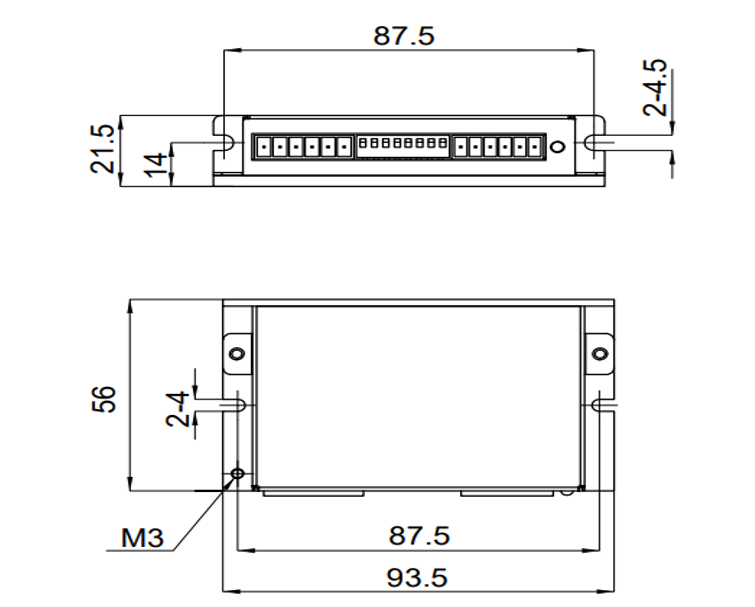

Dimensions

93.5×   56 × 21.5  mm

Servifce environment

Scenario

Avoid dust, oil mist, and corrosive gases

Humidity

<85%   RH, no condensation

Temperature

-20°C   - +40°C

Heat dissipation

Installed in the ventilated environment

Mass

0.125Kg
