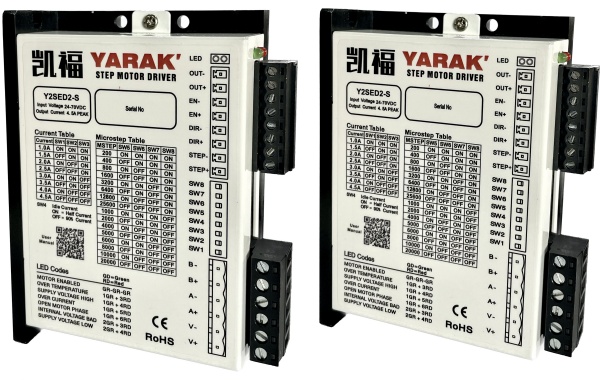

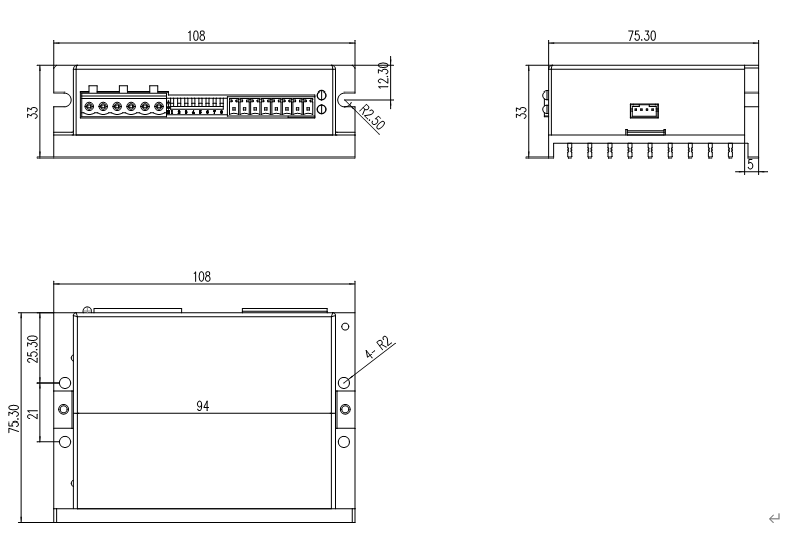

Installation Dimensions

108 × 75.3 ×33 mm

Input power

24 ~ 70V DC（±10%）

Current output

(peak)

1.0 ~ 4.5A

Adaptive motor

Two-phase stepper motor

Control mode

Pulse+direction (default), dual pulse

Communication interface

TTL serial port

Digital signal

Input signal

Pulse, direction, enable signals: Opto-isolator;   support 5~24V signals; maximum frequency 250Khz

Output signal

Alarm output: collector open circuit; opto-isolator;   maximum output 100mA@30V;

Current tap position

Dial setting

1.0、1.5、2.0、2.5、3.0、3.5、4.0、4.5 A

Subdivided tap position

Dial setting

200、400、800、1600、3200、6400、12800、25600、1000、2000、4000、5000、6000、8000、10000、20000

Recommended service

environment

Temperature

0 ~ +55 ℃

Humidity

0~ 90%RH below

Altitude

1000 m below

environment

No corrosive gases or dust.

The product shall not come in contact with   water and oil.

Dielectric strength

AC1.5KV between ground wires, capable of   withstanding voltage for 1 minute

Protection grade

IP20

Weight

0.25KG
