Overview

The driver can be   connected to two stepper motors to achieve synchronous motion.

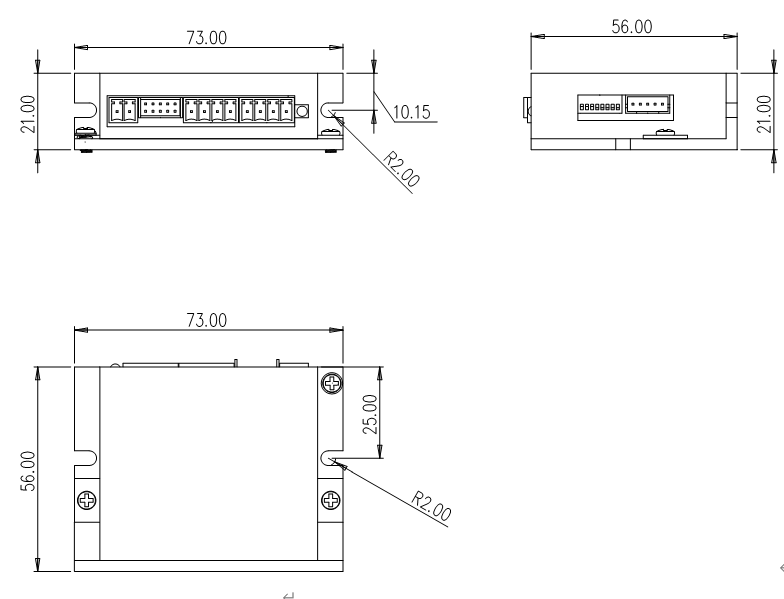

Installation Dimensions

73 × 56 ×21 mm

Input power

15 ~ 48V DC

Current output

1.0~4.5A (peak), with   consistent current between the two motors during operation

Adaptive motor

Two-phase stepper motor

Control mode

Speed mode

Communication interface

232 serial port

Digital signal

Input signal

Start, direction, enabling signal: differential;   optocoupler isolation; common end supports 5~24VDC

Output signal

Alarm output: collector open circuit; opto-isolator;   maximum output 100mA@30V;

Current tap position

Dial setting

1.0、1.5、2.0、2.5、3.0、3.5、4.0、4.5 A

Software setting

0.1~4.5 A

Speed level

Dial setting

0.5, 1.0, 1.5, 2.0,   2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 7.0, 8.0, 9.0, 10.0 rps

Software setting

0.01~50.00 rps

Recommended service

environment

Temperature

0 ~ +55 ℃

Humidity

0~ 90%RH below

Altitude

1000 m below

environment

No corrosive gases or dust.

The product shall not come in contact with   water and oil.

Dielectric strength

AC1.5KV between ground wires, capable of   withstanding voltage for 1 minute

Protection grade

IP20

Weight

0.1KG
