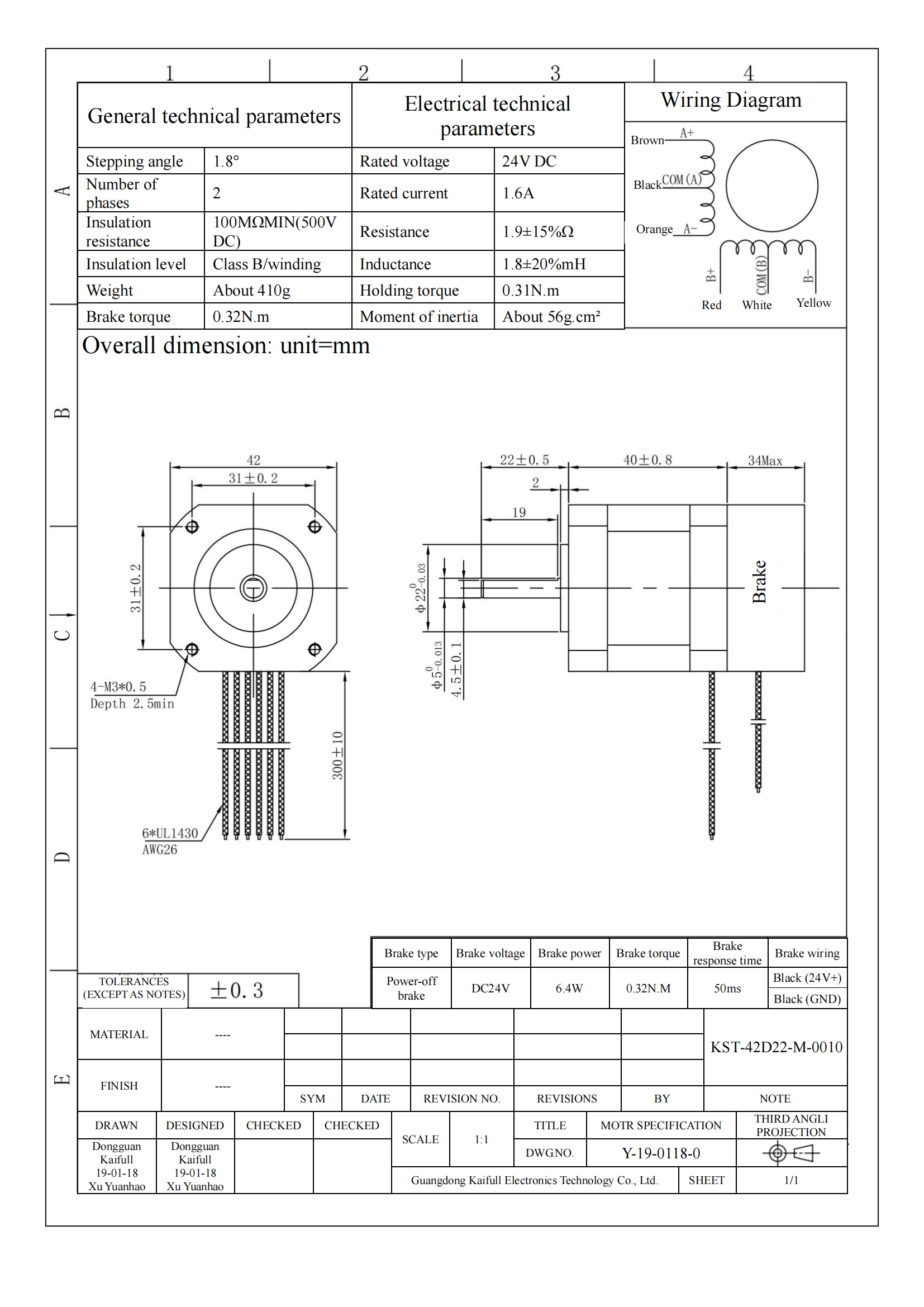

General technical parameters | Electrical technical parameters | ||
Stepping angle | 1.8° | Rated voltage | 24V DC |
Number of phases | 2 | Rated current | 1.6A |
Insulation resistance | 100MΩMIN(500V DC) | Resistance | 1.9±15%Ω |
Insulation level | Class B/winding | Inductance | 1.8±20%mH |
Weight | About 410g | Holding torque | 0.31N.m |
Brake torque | 0.32N.m | Moment of inertia | About 56g.cm² |

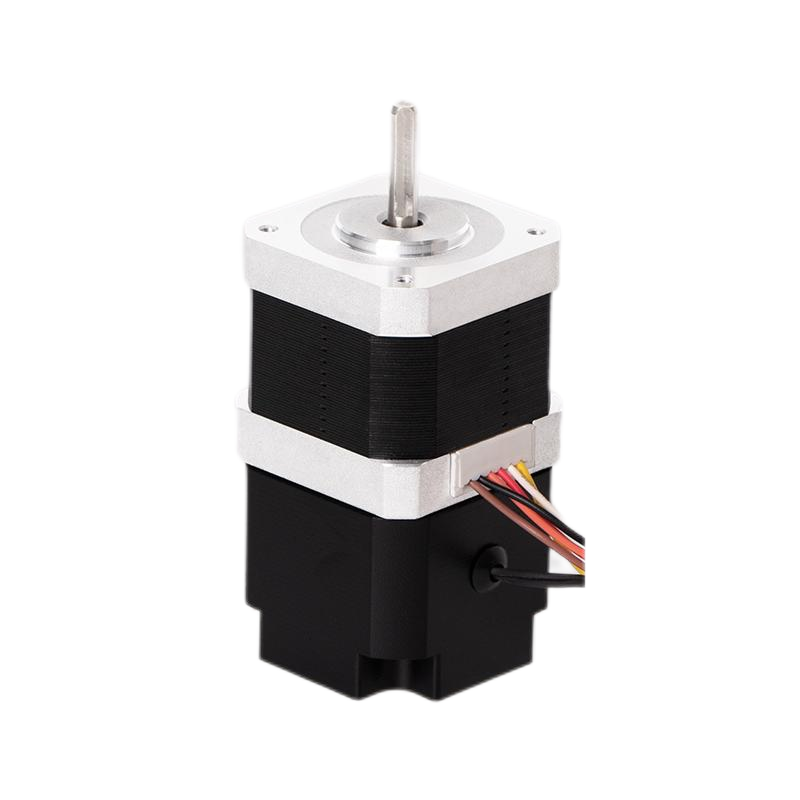

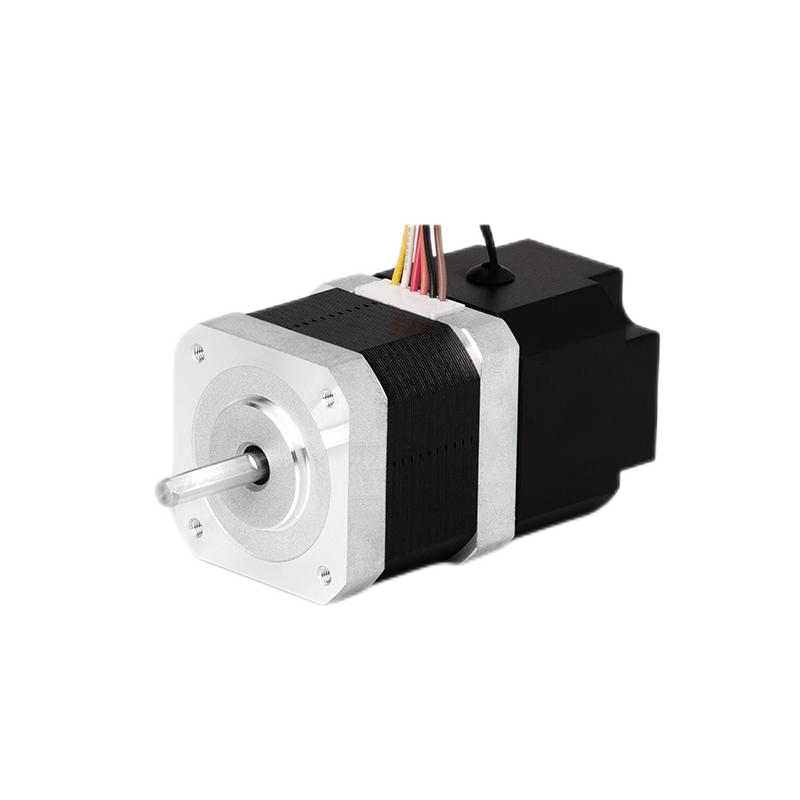

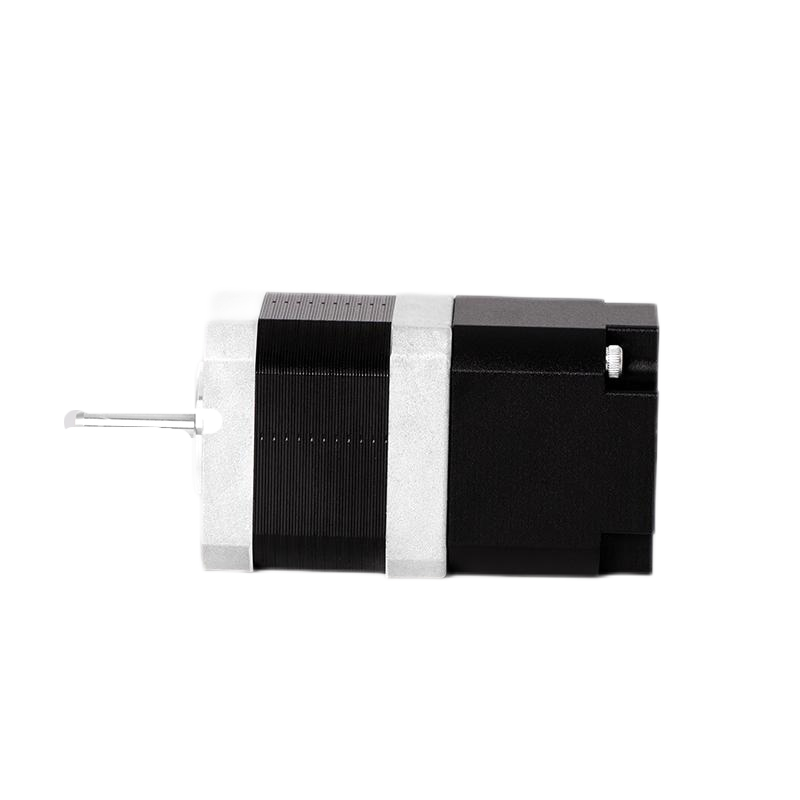

The KST-42D22-M-0010 is a compact and efficient two-phase stepper motor, designed to deliver high performance in precise motion control applications. With a step angle of 1.8° and a holding torque of 0.31N·m, this motor is ideal for smaller machines, robotics, and automation systems that require both accuracy and reliability.
This stepper motor operates with a rated current of 1.6A, powered by 24V DC, and provides a phase resistance of 1.9Ω±15% and an inductance of 1.8mH±20%. These electrical characteristics ensure efficient power consumption and consistent operation over time.
The KST-42D22-M-0010 features Class B insulation with an insulation resistance of 100MΩ minimum at 500V DC, making it suitable for a variety of environments. The motor offers brake torque of 0.32N·m and a moment of inertia of about 56g·cm², ensuring precise and reliable stopping actions during operation.
With a compact weight of 410g, this motor is an excellent choice for applications where space is limited, and energy efficiency is important.
