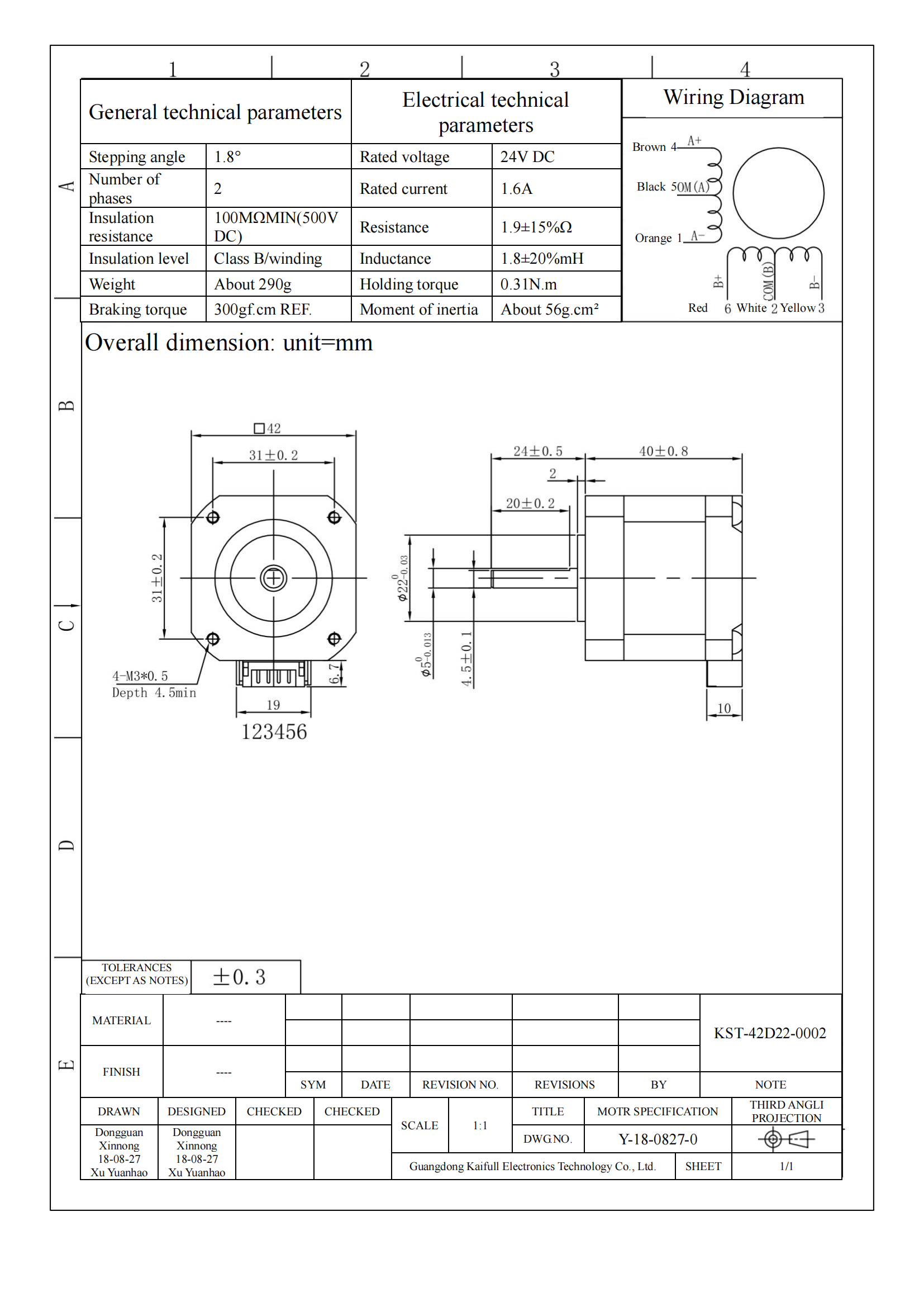

General technical parameters | Electrical technical parameters | ||
Stepping angle | 1.8° | Rated voltage | 24V DC |
Number of phases | 2 | Rated current | 1.6A |
Insulation resistance | 100MΩMIN(500V DC) | Resistance | 1.9±15%Ω |
Insulation level | Class B/winding | Inductance | 1.8±20%mH |
Weight | About 290g | Holding torque | 0.31N.m |
Braking torque | 300gf.cm REF. | Moment of inertia | About 56g.cm² |

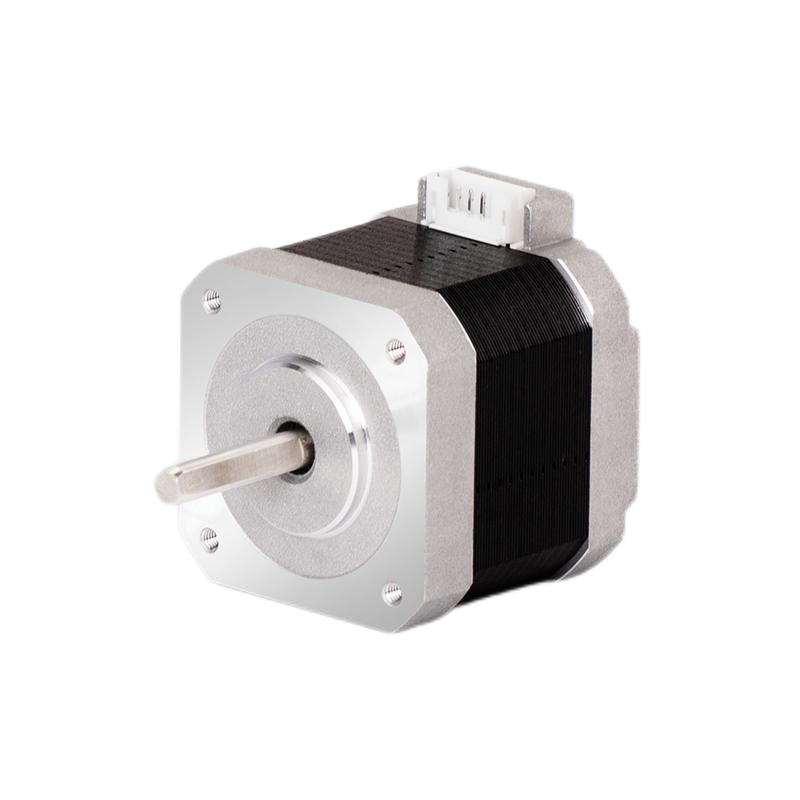

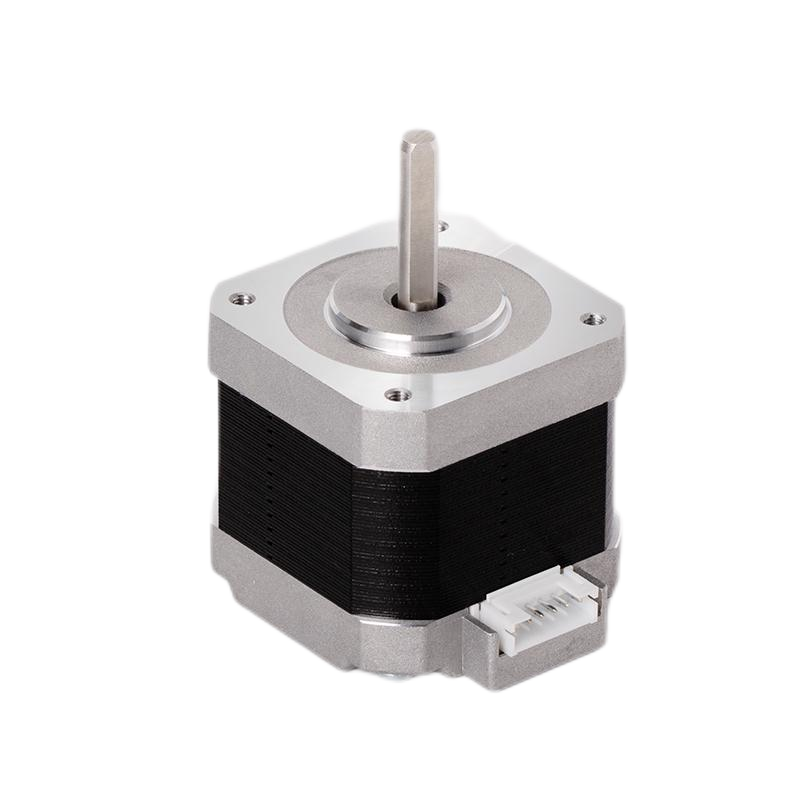

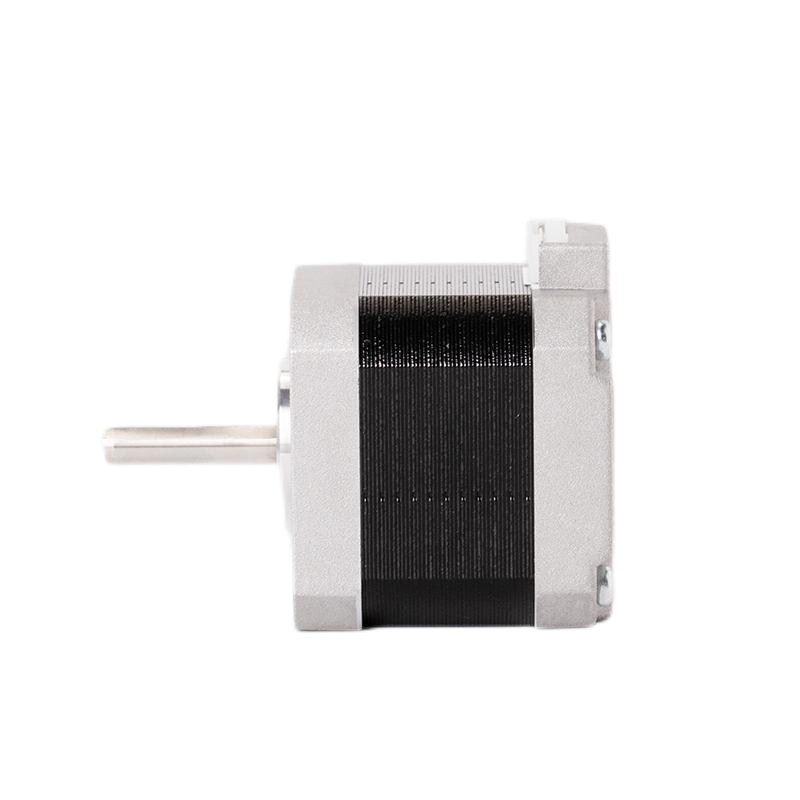

The KST-42D22-0002 is a two-phase stepper motor featuring a 1.8° step angle, 0.31N·m holding torque, and a rated current of 1.6A. Powered by 24V DC, this motor provides precise and reliable motion control for small machinery, robotics, and automation systems. With Class B insulation, 100MΩ insulation resistance, and a braking torque of 300gf·cm, it offers efficient and smooth operation.
